19/02/17. Piston Progress

I have spent a couple of hours today getting various parts back on the engine. Most importantly I’ve refitted the piston and crankshaft. I have also put on the oil filler and fitted the splashguard back in the sump. Prior to starting work I used a vacuum cleaner to remove all the loose pieces of metal and detritus that had accumulated in the bottom of the engine block since I first cleaned it out with paraffin, many moons ago!

img_6174-medium

The oil filler “K” fitted with a paper gasket

I had intended to use a piston ring compressor to drop the piston back down the bore, but as it turned out, I just squeezed the rings in gently whilst tapping the piston with a rubber mallet.

img_6178-medium

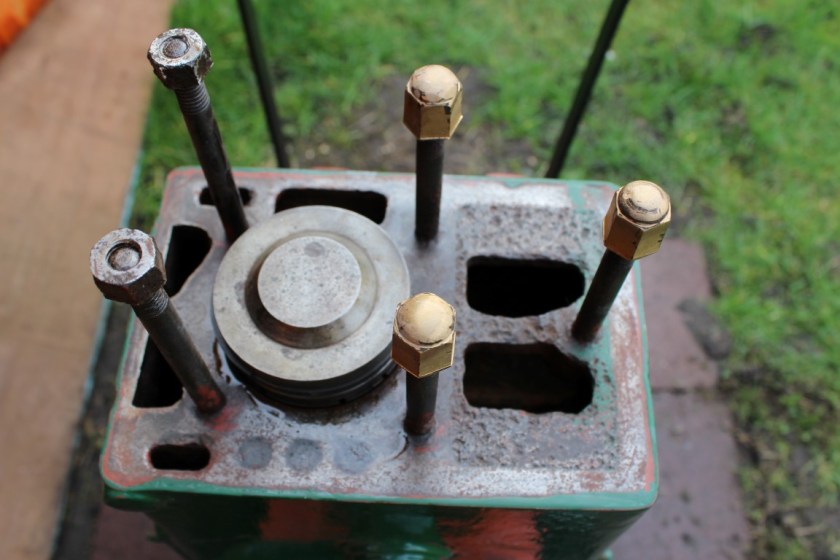

Dropping the piston down the bore

A paper gasket was put in place ready for the fitting of the crankshaft.

img_6177-medium

Crankshaft gasket

 This was also the time to fit the splashguard before fitting the crankshaft

img_6175-medium

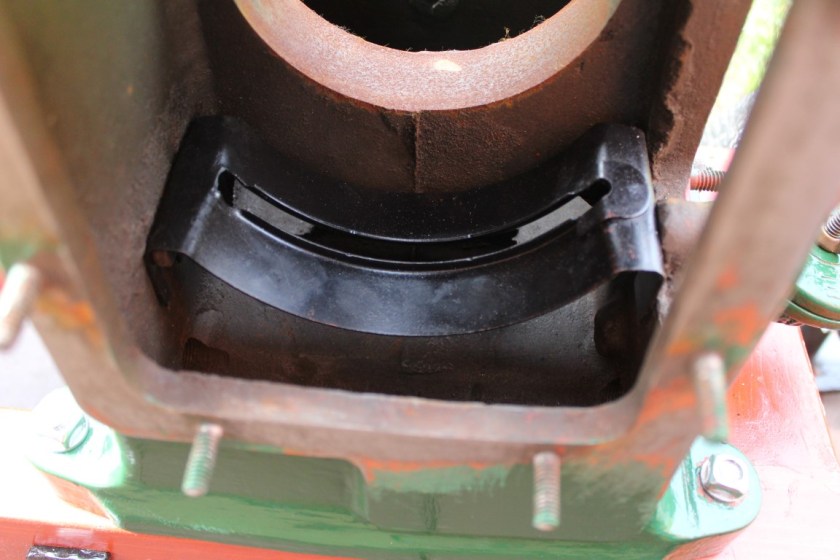

Crankcase Splashguard

img_6179-medium

Starting to look like an engine again!

I also took this opportunity to fit both oil drain plugs and fill the crankcase with oil

img_6180-medium

Oil poured in through the open crankcase

img_6181-medium

Oil filler shown up to correct level
